Tehnikum ltd brings together a team of engineers with decades of experience in the field of water purification and filtration, as well as sludge dehydration, which has over 100 realized projects and plants in this field.
We provide complete technological solutions from testing and finding technological solutions, design, production, installation of plants and treatment devices:
We offer our clients technological solutions, design, manufacture and installation of equipment, proof of parameters for discharge, „turnkey“ system.
Our plants, systems and devices are designed and manufactured to meet all investor requirements, implementing legal standards, technological achievments and economic justification.
We manufacture plants for WASTEWATER TREATMENT FROM VARIOUS INDUSTRIAL PROCESSES, such as:
Mechanical treatment in wastewater treatment technology includes equalization, separation of coarse material on grids and sieves, separation of inert, sediment and fittable particles, as well as separation of fats and oils.

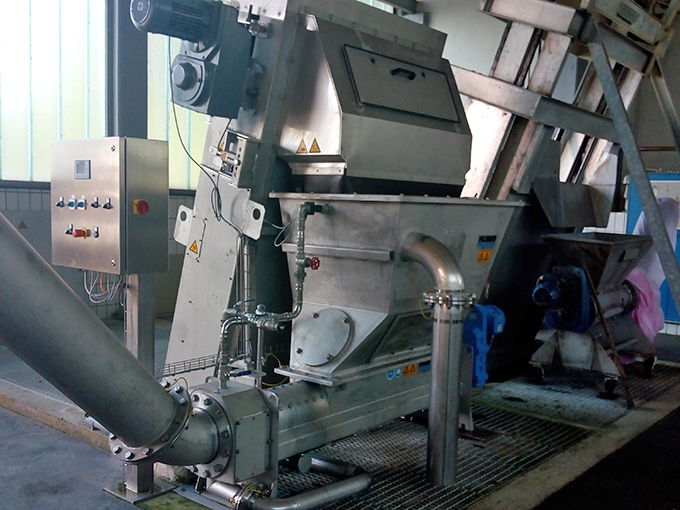

Insoluble, larger and floating substances are removed from the wastewater with the help of gratings. The separation of these substances is done in order to protect the devices and pipelines from damage and congestion and to facilitate the treatment of wastewater.
(coagulation, neutralization, flocculation, reduction of chromium, oxidation of cyanide, etc.)
Chemical treatment involves the addition of chemicals to wastewater to convert dissolved, suspended components into insoluble forms, oxidation and reduction reactions, adjusting the pH of wastewater.
We design, construct and manufacture:

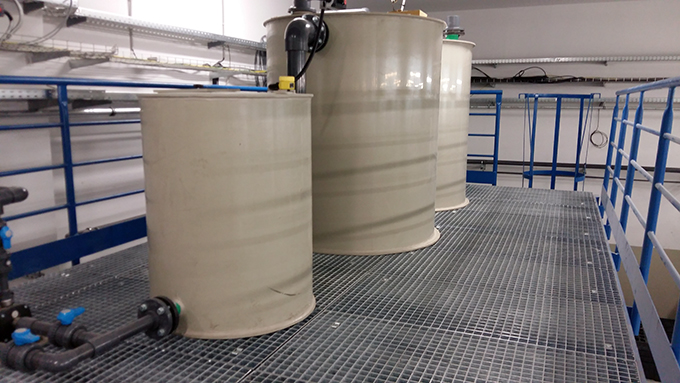

We produce fully automatic chemical dosing systems: coagulants, pH correction, flocculants, etc.…
The DAF (Dissolved Air Flotation) device is used to separate dispersed and suspended particles. It is based on making a supersaturated solution of air in the wastewater, and then introducing it into the flotation pool.
The air disperses from the bottom of the pool and on its way to the top "collect" the particles, and by the thrust force it carries them to the surface.
Dissolution of air can be achieved in the inlet water stream itself, in the part of the inlet stream or in the recirculation flow of purified water.
Flotation is a process of mechanical separation based on making a supersaturated solution of air in wastewater. Micro bubbles come into contact and bind with suspended matter and allow them to reach the surface and float. The air disperses from the bottom of the pool and on its way to the top "buys" particles, and the force of the thrust carries them to the surface.
The coagulant neutralizes the electrostatic load of colloidal particles, and enables their agglomeration into flocs. The polyelectrolyte binds the neutralized particles into even larger flocs.
The tubular saturator has a unique construction, and enables air bubbles measuring 10-70 micrometers, which gives exceptional efficiency.
Dairy industry, ice cream production, juice production, alcohol production, breweries, meat and fish processing, fruit and vegetable processing, drinking water, etc.
Plastic recycling, chemical industry, oil and gas, textile industry, textile industry, leather industry, laundries, packaging washing, etc.
Advantages of our DAF Systems:
- Very high degree of reduction of polluting parameters
Reduction rate from 90-99%
Oils and fats
Reduction rate from 90-99%
Reduction rate from 70-80%
Reduction rate from 70-80%
- Comprehensive and efficient solution that provides high stability and efficiency of dirt removal. Reliable method for technological wastewater treatment
- Simple installations provide a compact set of equipment and take up very little space- Great savings because the design of the system and technological parameters provide low consumption of energy, air and chemicals.
- Very stable operation of the coagulation, neutralization and flocculation systems
- Low degree of turbulence, no retraction of floating sediments.
- We have a developed package of digital services that allows monitoring and optimization of DAF system operation remotely, and remote-control systems.

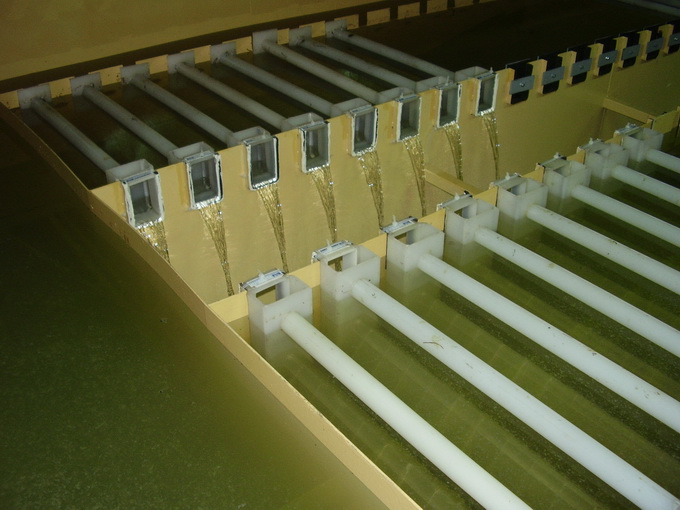

Instead of classic lamellas, we use special "U" profiles that allow:
The DAF device is made of stainless steel.
We can deliver complete systems or repair and upgrade existing DAF devices.
Types of precipitators:
Sedimentation tanks are made of stainless steel, HDPP, HDPE, carbon steel with anti-corrosion protection.
For those reasons, the Lamellar sedimentation tank has a much smaller volume for the same capacity compared to the classic Static sedimentation tank.
The materials from which we make sedimentation tanks can be stainless steel, carbon steel with anti-corrosion protection, HDPP (high density polypropylene), concrete, etc.

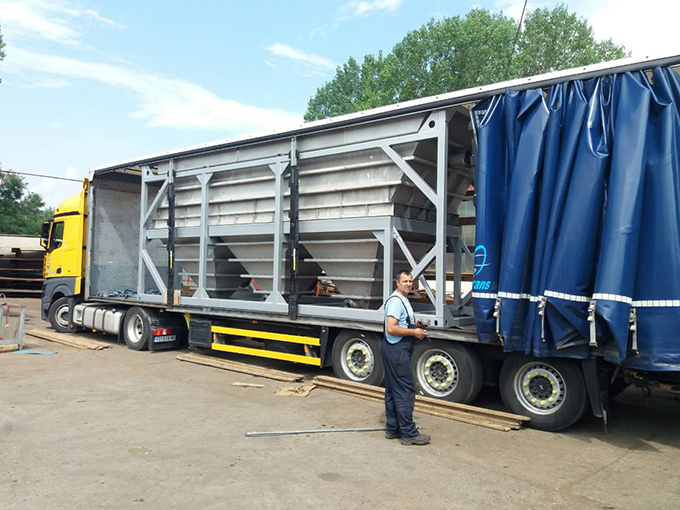

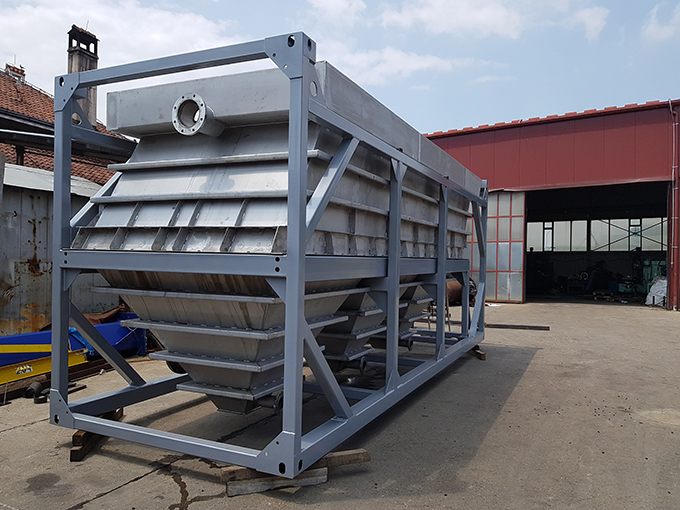

This type of sedimentation tank effectively combines the separation of solid materials from liquids with the coarse separation of fats and oils from water, while in the conical bottom of the sedimentation tank the separated sludge is compacted. All three processes are accelerated by fine vibrations originating from vibrating motors attached to the conical bottom.
These sedimentation tanks can be used in a wide range of process industriy and utilities, in the preparation of clean process water in various industries, preparation of drinking water, various recirculations and reuse of manufactured fluids, industrial and municipal wastewater treatment processes, and in the revitalization of useful products and processing of intermediate products in various production processes.
Due to the special construction and the principle of operation, these sedimentation tanks can reach a capacity of 400 m3 / h per device - unit.
The water retention time in the sedimentation tank with package inserts is 5-15 minutes.
For the same deposition effect, the LAMELAR SEDIMENTATION TANK has a 10 times smaller volume compared to the SEDIMENTATION TANK. It has a smaller volume 10 times.
HOPPER BOTTOM TANK in relation to the STATIC SEDIMENTATION TANK has a smaller volume up to 20 times, and in relation to the LAMELAR SEDIMENTATION TANK up to 4 times.

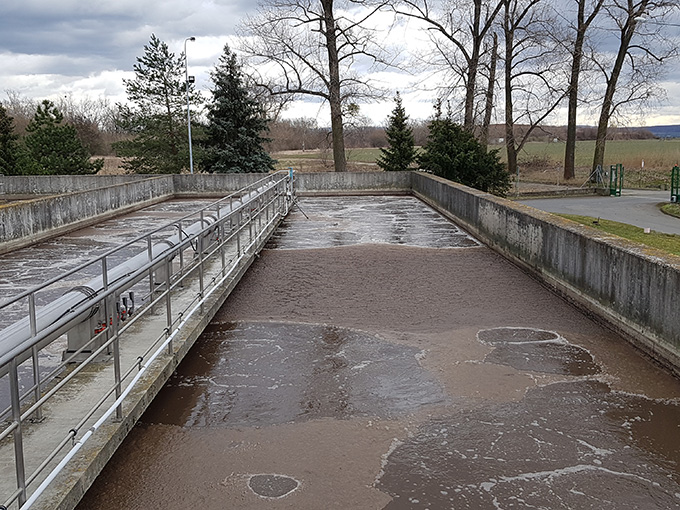

Biological wastewater treatment is based on the removal of dissolved organic matter and non-sedimentary colloidal particles by the action of microorganisms found in activated sludge. Classical biological treatment of wastewater is based on primary sedimentation, removal of pollution by microorganisms, secondary sedimentation of activated sludge.
The SBR (Sequential Batch Reactor) operates in batch mode with aeration and sludge deposition in the same reactor. The process is based on reactor filling, reaction, decantation and standstill. The main advantages of SBR are efficiency at lower flows, and at very high loads, flexible process management, easy installation, less need for space and very good sludge quality.
SBBR (Sequencing Batch Biofilm Reactor) is an improved design of the SBR reactor, which is based on the existence of a biofilm carrier, which increases the concentration of biomass presence. The advantages of SBBR are the same as with SBR, except that the efficiency of MBBR devices is higher due to the presence of biofilms.

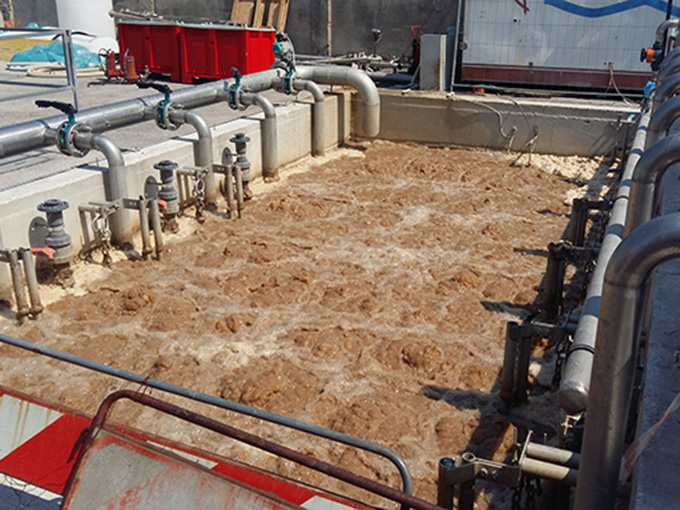

MBBR (Moving Bed Biofilm Reactor) technology is based on specially designed plastic biofilm carriers that are suspended and continuously moving inside the reactor of a certain volume in which aeration is performed. The main advantages of the MBBR process are a longer lifespan of biomass compared to conventional activated sludge treatments and more stable wastewater treatment process.
The advantages of MBBR technology:
MBR (Membrane bioreactor) technology is based on the removal of pollution by a combination of microorganisms and microfiltration, which eliminates the need for the existence of a secondary sedimentation tank. In addition, the MBR forms a very efficient removal of organic pollution, which is accompanied by a constant quality of outcoming wastewater or a unique quality of wastewater in relation to larger fluctuations in the quality of incoming water.
The advantages of MBR systems:
Our MBR systems meet very strict requirements for achieving the quality of purified water that can be reused by:
It has one of the most stringent and demanding certificates in the world for reuse of purified water:
< 0,2 NTU 5% 24 hours
< 0,5 NTU always
Biological purifiers can be placed in the tanks made of concrete, steel, or can be a container type.
Biological wastewater treatment plants of container type
Aeration systems: diffusers, low-pressure compressors - "blowers", pipes and pipe fittings, media carriers (bacteria) for MBBR systems.
Comparative overview of parameters obtained during wastewater treatment with different types of biological reactors.
We make complete systems of automatic control of plants: regulation and management of technological parameters that are necessary for the correct operation of the system. Programs that manage systems via PLC in accordance with the prescribed technology and optimize the work of all consumers.
Delivery of complete cabinets, development of application software, connection, installation of probe measuring and regulating equipment (pH, Rx, O2, etc.), flow meters, levels, etc.
Commissioning and training of employees.
Development of a system for treatment of sludge generated in the process of sedimentation, flotation, and biological treatment as products in various industrial processes.
Devices and equipment used for sludge dehydration: filter presses, decanters, dick presses, thickeners of various capacities, devices with dehydration bags, etc.

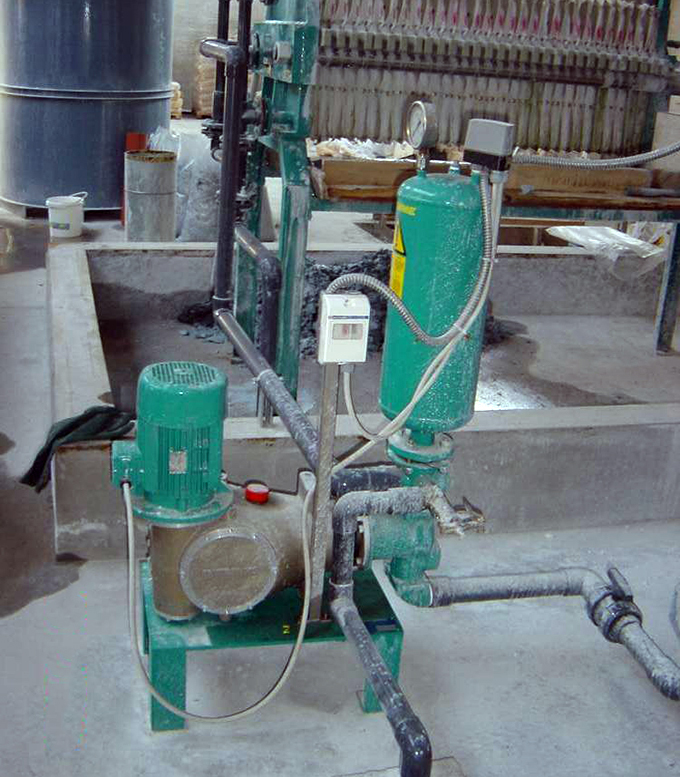

FILTER PRESSES are machines for separating solid particles and liquids from a suspension that is transported by a high-pressure pump.
DISK PRESSES can dehydrate waste sludge directly from the oxidation chamber (there is no need for gravity thickening tanks). It is suitable for 24-hour work, with occasional control.
DEHYDRATION DEVICE WITH FILTER BAGS for sludge dehydration consists of several bags whose size and characteristics are selected based on the composition and amount of sludge. The sludge enters the inside of the bag, where solid particles remain on the fabric, while water passes through the fabric.
CENTRIFUGAL SEPRATORS remove the solid phase from the liquid by the action of internal centrifugal force which is the result of the speed of rotation of the vessel of large diameter.
ATMOSPHERIC WASTEWATER TREATMENT
